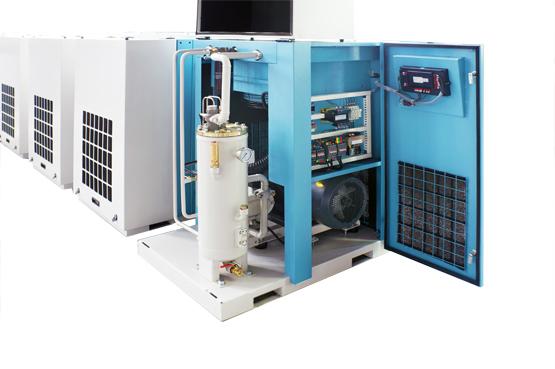

GA7.5-GA37 New design screw compressor
[ Edit: admin     Created Date: 2013-05-11   Readed Times:      Font:big middle small]




Souair compressors bring you outstanding performance, flexible operation and the highest productivity, while minimizing the total cost of ownership. Built to perform even in the harshest environments, our products keep your production running smoothly.
Offering best-in-class performance and total reliability, our products answer your advanced needs.
1.Industry-leading Free Air Delivery.
2.The lowest power consumption and noise emission in the industry.
3.Excellent-quality, dry air thanks to the new, integrated dryer range.
4.Easy monitoring and maintenance thanks to the new Elektronikon® graphic controller with  high-defi nition color display





GA7.5-GA37 Model screw air compressor

Discharge capacity: 0.8~6.58m3/min

Discharge pressure:0.7-1.3Mpa

Installed power: 10HP(7.5KW)~50HP(37KW)

Model

GA7.5

GA11

GA15

GA18.5

GA22

GA30

GA37

Flow Capacity(M3/min)/

Pressure(Bar)

1.2/7

1.65/7

2.25/7

3.22/7

3.60/7

5.2/7

6.58/7

1.1/8

1.53/8

2.03/8

3.01/8

3.56/8

5.06/8

6.26/8

0.96/10

1.32/10

1.82/10

2.52/10

3.07/10

4.53/10

5.80/10

0.8/13

1.1/13

1.55/13

2.3/13

2.84/13

3.90/13

5.06/13

Cooling Type

A/C

A/C

A/C

A/C

A/C

A/C

A/C

Driven Method

V-Belt

V-Belt

V-Belt

V-Belt

Coupling

V-Belt

Coupling

Power(KW)

7.5

11

15

18.5

22

30

37

Dimension(L*W*H)MM

795*670*940

820*700*1050

880*710*1040

1020*800*1190

1020*800*1190

1030*860*1320

1140*920*1360

Weight(Kg)

240

350

420

540

610

660

840

Outlet size

1/2''

3/4''

3/4''

G1''

G1''

G1 1/2''

G1 1/2''

Compressed stage:  single ;  V/F: 380V/460V,50Hz/60Hz,3Ph ; Ambient Temperature -5 ~ 46 ; Startup:  Delta star
