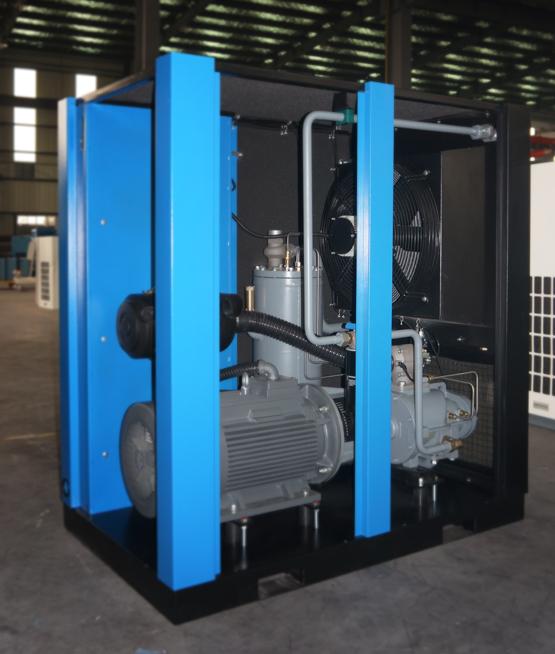

GA185-GA355 Model screw air compressor
Discharge capacity:25.1-67.8m3/min
Discharge pressure:0.7-1.3Mpa
Installed power: 250HP(185KW)~480HP(355KW)
|
Model
|
GA185
|
GA200
|
GA220
|
GA250
|
GA280
|
GA315
|
GA355
|
|
Flow Capacity(M3/min)/
Pressure(Bar)
|
32.5/7
|
35/7
|
36.8/7
|
42.7/7
|
50.2/7
|
57.1/7
|
67.8/7
|
|
30.8/8
|
33/8
|
34.7/8
|
40.8/8
|
50.0/8
|
56.1/8
|
66.7/8
|
|
28.2/10
|
29/10
|
30.8/10
|
38.1/10
|
42.1/10
|
50.0/10
|
56.2/10
|
|
25.1/13
|
27/13
|
28.9/13
|
34.9/13
|
40.5/13
|
42.0/13
|
46.8/13
|
|
Cooling Type
|
A/C or W/C
|
A/C or W/C
|
A/C or W/C
|
A/C or W/C
|
A/C or W/C
|
A/C or W/C
|
A/C or W/C
|
|
Driven Method
|
Coupling
|
Coupling
|
Coupling
|
Coupling
|
Coupling
|
Coupling
|
Coupling
|
|
Power(KW)
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
|
Dimension(L*W*H)MM
|
2760*1550*2140
|
2850*1500*2100
|
2900*1550*2100
|
3100*1550*2195
|
3200*2180*2200
|
3200*2180*2200
|
3500*2200*2350
|
|
Weight(Kg)
|
3850
|
4100
|
4400
|
4600
|
7800
|
8400
|
8800
|
|
Outlet size
|
DN80
|
DN80
|
DN80
|
DN80
|
DN100
|
DN100
|
DN100
|
|
|
|
|
|
|
|
|
|
|
Compressed stage: single ; V/F: 380V/460V,50Hz/60Hz,3Ph ; Ambient Temperature -5℃ ~ 46℃ ； Startup: Delta star
|
