Technical characteristics of this type of unit:



1) Internal variable compression ratio allowed enlarge range of inlet pressure fluctuations (-50Kpa ~ 0.6Mpa (G)), and keep the outlet pressure stability. (Maximum discharge pressure up to 2.5Mpa (G)



2) Match with oil-rich associated gas hydrocarbons, saturated water temperament component, and needn’t assemble inlet separator in the entrance to the compressor.



3) screw-type cable with capacity of sediment tank, the unit can work properly even if inhalation contains impurities process gas. (Allowing maximum sediment 300g/m3)



4) The unit uses labyrinth-type mechanical seal, so that gas can be separated with the outside air and lubricating oil, coolant (diesel, water) and oil separate. In any case (even if the unit fails) to ensure that air can not penetrate, gas can not leak to ensure the unit safe.



5) The oil and gas screw compressor in terms of technical, economic, use and maintenance etc are more advantages, characteristics than traditional reciprocating machine in domestic..



This unit connect to the natural gas well and extracts the natural gas directly, then the gas will be transmitted to the main pipe network after pressurized.

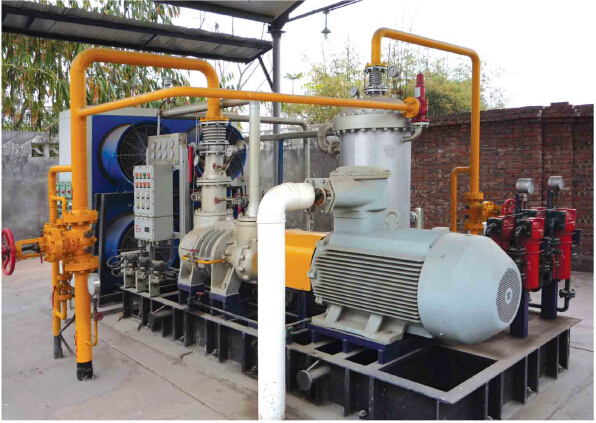

This compresosr is used in sulige gas field of Inner Mongolia. The pressure of the originial gas well is high enough to pipe the gas into the big pipelines freely, but as the time flies, the capacity of gas is reducing, the pressure decreased gradually. This set can be placed on the gas well directly, after extracted and pressurized the natural gas would be transmitted into the big pipeline. It's the essential equipment for nature gas extraction in remote areas.



 This unit connects to the natural gas well and extracts the natural gas directly, then the gas will be transmitted to the main pipe network after pressurized.
