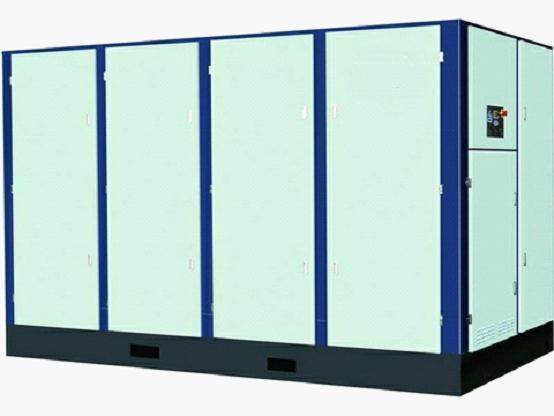

Low pressure screw air compressor
This kind screw compressor is always used for Textile plant,glass plant,cement plant,need 2-5bar compressed air, sometimes reach to 1.5bar pressure compressor.
Characteristic:
1. Save energy
2. Special air end with high efficiency
3. Bigger cooler square
4. High efficiency motor
5. EPC controller,adjusting the flow capacity from compressor.
Technology Data Sheet:
|
Model
|
Motor Power
|
Pressure
|
Flow capacity
|
Outlet size
|
Weight
|
Dimension
|
|
（kW）
|
（bar）
|
（m3/min）
|
(KG)
|
(L×W×H mm)
|
|
LG22-5
|
22
|
5
|
5.2
|
G1½”
|
700
|
1300×1000×1350
|
|
LG45-5
|
45
|
5
|
9.8
|
DN50
|
1030
|
1350×1150×1450
|
|
LG55-3
|
55
|
3
|
16.7
|
DN80
|
2890
|
3050×1850×2120
|
|
LG75-3
|
75
|
3
|
20.0
|
DN80
|
2960
|
3050×1850×2120
|
|
LG90-3
|
90
|
3
|
23.5
|
DN100
|
3060
|
3050×1850×2120
|
|
LG110-3
|
110
|
3
|
28.5
|
DN100
|
4300
|
3050×1850×2120
|
|
LG132-3
|
132
|
3
|
34.0
|
DN125
|
5800
|
3600×2120×2200
|
|
LG160-3
|
160
|
3
|
41.0
|
DN150
|
5930
|
3600×2120×2200
|
|
LG200-3
|
200
|
3
|
50.0
|
DN80
|
1870
|
2100×1350×1550
|
|
LG250-3
|
250
|
3
|
60.0
|
DN200
|
7200
|
4350×2050×2120
|
Note：1，Power resource：380V/3/50Hz 2，Water cooled type、Special power resource
