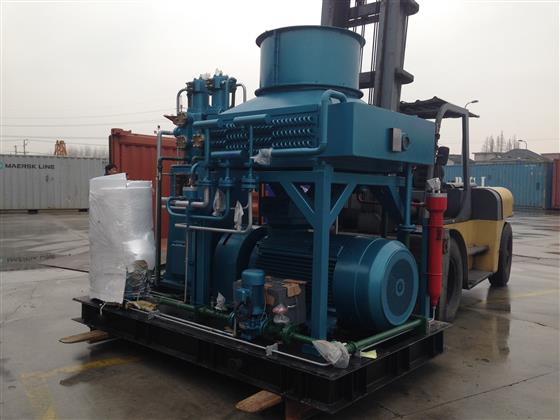

Souair Nitrogen booster gas compressor
|
No
|
Name
|
Unit
|
Technical parameters
|
|
1
|
model
|
|
VF-2.2/10-150
|
|
2
|
Compressor type
|
|
V air cooled reciprocating piston
|
|
3
|
Compression medium
|
|
nitrogen
|
|
4
|
State of intake flow
|
m3/min
|
2.2
|
|
5
|
Standard state of flow
|
Nm3/min
|
23(an atmospheric pressure 20 degrees)
|
|
6
|
Intake pressure
|
Mpa
|
1.0
|
|
7
|
Intake air temperature
|
℃
|
Less than 45
|
|
8
|
Exhaust pressure
|
Mpa
|
15
|
|
9
|
Exhaust temperature
|
℃
|
Less than 180
|
|
10
|
The gas temperature
|
℃
|
Less than 65
|
|
11
|
Cooling model
|
|
Air cooling
|
|
12
|
Lubrication method
|
|
oiling
|
|
13
|
Transmission model
|
|
Elastic directly connected
|
|
14
|
Compact series
|
|
3
|
|
15
|
Rotate speed
|
|
740
|
|
16
|
route
|
|
120
|
|
17
|
Cylinder bore
|
Mm
|
1-Φ210/50,single action
|
|
18
|
The secondary diameter
|
Mm
|
1-Φ150/50，single action
|
|
19
|
Level 3 cylinder diameter
|
Mm
|
2-Φ70，single action
|
|
20
|
Shaft power
|
Kw
|
181.4
|
|
21
|
Motor
|
|
185KW，380V，50HZ，IP54
|
|
22
|
The fan motor power
|
|
8KW，380V，50HZ，IP54
|
|
23
|
Pump motor power
|
|
1.5KW，380V，50HZ，IP54
|
|
24
|
Starting mode
|
|
Soft start
|
|
25
|
Control
|
|
Plc+ transmitter + touch screen
|
|
26
|
Controlling item
|
|
Inlet pressure, primary stress, secondary stress, triple pressure,
oil pressure, exhaust temperature, lubricating oil temperature.
|
|
27
|
Overall dimensions (length*width*height)
|
Mm
|
3000*2500*2500
|
|
28
|
Weight
|
Kg
|
6500
|
|
29
|
Delivery
|
day
|
90
|
|
No
|
Name
|
Unit
|
Technical parameters
|
|
1
|
model
|
|
VF-1/10-150
|
|
2
|
Compressor type
|
|
V air cooled reciprocating piston
|
|
3
|
Compression medium
|
|
nitrogen
|
|
4
|
State of intake flow
|
m3/min
|
1
|
|
5
|
Standard state of flow
|
Nm3/min
|
10(an atmospheric pressure 20 degrees)
|
|
6
|
Intake pressure
|
Mpa
|
1.0
|
|
7
|
Intake air temperature
|
℃
|
Less than 45
|
|
8
|
Exhaust pressure
|
Mpa
|
15
|
|
9
|
Exhaust temperature
|
℃
|
Less than 180
|
|
10
|
The gas temperature
|
℃
|
Less than 65
|
|
11
|
Cooling model
|
|
Air cooling
|
|
12
|
Lubrication method
|
|
Oil inject
|
|
13
|
Transmission model
|
|
Flexible coupling direct connected
|
|
14
|
Compact series
|
|
3
|
|
15
|
Rotate speed
|
|
740
|
|
16
|
route
|
|
92
|
|
17
|
Cylinder bore
|
Mm
|
1-Φ175/35,single action
|
|
18
|
The secondary diameter
|
Mm
|
1-Φ120/35，single action
|
|
19
|
Level 3 cylinder diameter
|
Mm
|
2-Φ45，single action
|
|
20
|
Shaft power
|
Kw
|
82.4
|
|
21
|
Motor
|
|
90KW，380V，50HZ，IP54
|
|
22
|
The fan motor power
|
|
5KW，380V，50HZ，IP54
|
|
23
|
Pump motor power
|
|
1.5KW，380V，50HZ，IP54
|
|
24
|
Starting mode
|
|
Soft start
|
|
25
|
Variable speed
|
|
Converter
|
|
26
|
Control
|
|
Plc+ transmitter + touch screen
|
|
27
|
Controlling item
|
|
Inlet pressure, primary stress, secondary stress, triple pressure,
oil pressure, exhaust temperature, lubricating oil temperature.
|
|
28
|
Overall dimensions (length*width*height)
|
Mm
|
2800*2350*2200
|
|
29
|
Weight
|
Kg
|
4800
|
|
30
|
Delivery
|
day
|
40
|
