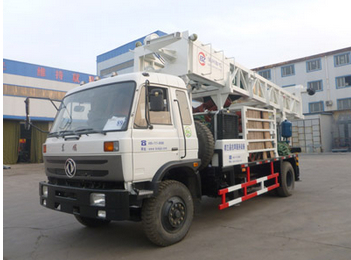

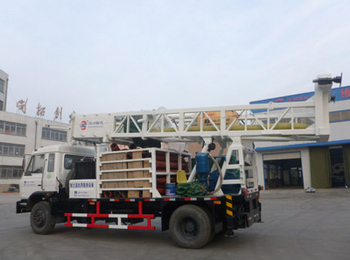

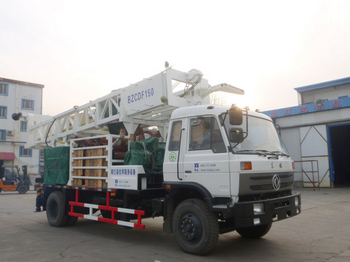

BZCDF150SDF Truck mounted reverse circulation drilling rig is our self-dependent innovation product. It is top head drive drilling rig. It adopts famous brand TRUCK 4X2 special truck chassis and the generator, hydraulic system, electronic control system, 6BS gravel pump, drill tower are on the chassis;
Mail Feature:
1.BZCDF150SDF Truck mounted reverse circulation drilling rig is our self-dependent innovation product. It is top head drive drilling rig. It adopts famous brand TRUCK 4X2 special truck chassis and the generator, hydraulic system, electronic control system, 6BS gravel pump, drill tower are on the chassis;
2.The motive power comes from the truck engine, so the rig can work with truck engine and is a electromechanical、hydraulic、pneumatic controlled rig ;
3.The rig uses mud as the flushing liquor with 6BS gravel pump to drill; the equipped CB—E532vacuum pump system provides water for the gravel pump.
4.The rig equips with hydraulic system, hydraulic tower, hydraulic supporting legs.
5.The drill pipes is screw thread joint, with special unloading device, easy to change the drill pipe.
6.The appearance of rig is pretty; it has a high efficiency because of having larger torque; it is suitable for water well engineering, construction, building, bridge foundation, port, dam and so on; it is popular with the domestic and foreign clients.
BASIC TECHNICAL：
|
Technical parameter
|
|
Drill depth(m)
|
150
|
|
Drill diameter(mm)
|
500-2500
|
|
Top head speed(r/min)
|
22
|
|
Top head torque(kN.m)
|
7.5
|
|
Total line pull force of minor winch(t)
|
18
|
|
Tower hight(mm)
|
6980
|
|
Bearing (t)
|
20
|
|
Drill pipe(mm)
|
Ф168×8×2000
|
|
6BS gravel pump
|
theoretical flow(m³/min)
|
200
|
|
Revolving speed(r/min)
|
750
|
|
Input power(kw)
|
30
|
|
CB—E532 vacuum pump
|
Max-displacement(L/min)
|
3400
|
|
Revolving speed(r/min)
|
1450
|
|
Input power((kw)
|
7.5
|
|
Engine
|
Diesel engine
|
model
|
YC6J180-33
|
|
Rated power(KW)
|
132
|
|
speed(r/min)
|
2500
|
|
torque
|
590N.m/1400-1700rpm
|
|
Drive form of chassis
|
4×2
|
|
Generator set
|
Rated power(kW)
|
100
|
|
Rated voltage (V)
|
400
|
|
frequency （Hz）
|
50
|
|
Walking speed(km/h)
|
75
|
|
Transport dimension (L×W×H)(mm)
|
9620*2480*3920
|
|
Working dimension (L×W×H)(mm)
|
8680*4560*8852
|
